SiteGuard Rapid Security Tower

Portable Security, Reimagined

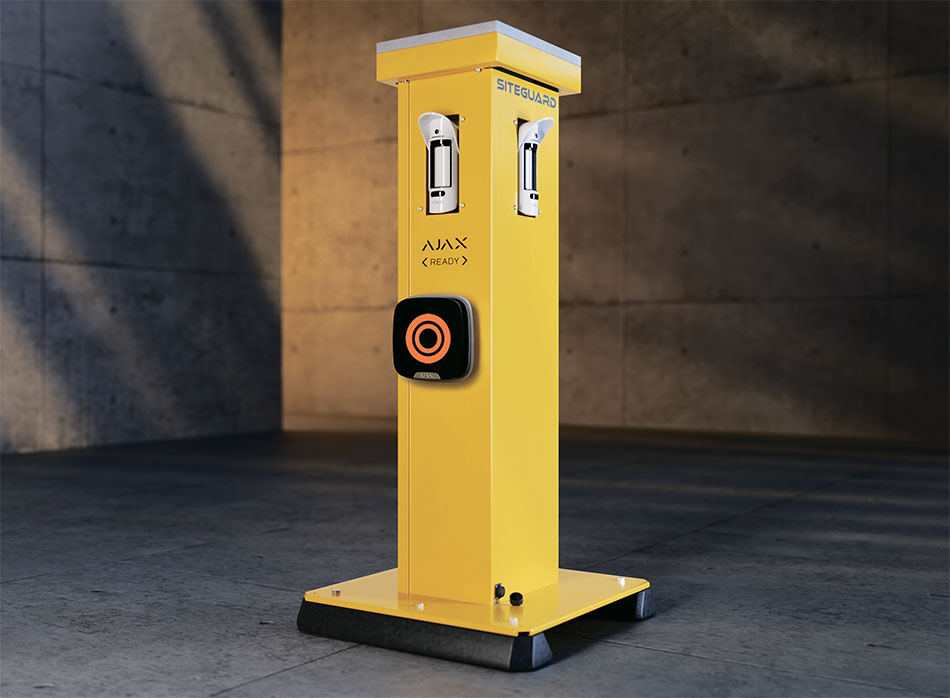

Introducing the SiteGuard Rapid Security Tower - Ajax Installed & 50AH Battery

The SiteGuard SG1 is a stand alone rapid deployable security tower meticulously designed to house AJAX Intrusion protection devices for remote sites without power or connectivity.

SiteGuard provides 360 degree coverage of an area up to 30m with the use of up to 4 x MotionCam Outdoor devices; powered by built-in battery and solar technology; SiteGuard can provide perimeter protection without the need for mains power.

With no industry immune from crime; SiteGuard can be introduced across multiple sectors: construction sites, agricultural and farming land, vacant properties, storage units for equipment and machinery as well as event spaces.

KEY FEATURES

• Powered by built-in battery with Solar technology
• 4 x MotionCam Outdoor detectors to each side provides full 360° coverage
• Detection range 3-15 meters
• 2 x 113db Sounders, sound on activation or remotely activated
• Remote Management & Alert Notification via App (iOS & Android)
• Sim Card included for 4G connectivity
• Scenarios for auto Arm/Disarm in line with operating hours
• Anti-tamper & anti-masking technology (will alert when system is both armed & disarmed)
• Alert verification with high quality images on activation, along with Photo-on-Demand feature
• Easily re-located between sites
• Ability to manage multiple secondary units & other AJAX devices

TOWER INCLUDES:

• 12v Solar Panel with Charge Controller
• Secure IP enclosure for Charge Controller & AJAX Hub*
• Laser cut & threaded mountings for all AJAX Devices
• Securing screws for all AJAX Devices
• Wiring loom for battery connection
• External charge connector
• 2 x Sturdy Anti-Vibration Feet
• Galvanised Steel Body & Base
• 2 x Removable Travel Feet (standard)
• Trickle Charger Socket

*AJAX Hub not included w/ Core Unit

DIMENSIONS

• Height: 1380mm
• Base Width: 680mm (inc. feet)
• Weight: 37-70kg (Dependent on battery used)

DOWNLOADS

(opens pdf in new window)

DIGITAL BROCHURE

For full specifications including electrical data, mechanical data, battery and charge controller, please download the:

SITEGUARD DATA SHEET

RECOMMENDED KIT LIST:

• AJAX Hub2 Plus / AJAX Hub2 4G
• 12-24v PSU for Hub2/Hub2Plus/ReX2 w/ dry contact relay
• 4 x AJAX MotionCam Outdoor PhOD; (installed PhOD devices ensure full functionality in the event of alert scenarios)
• AJAX DoorProtect Plus
• 2 x AJAX StreetSiren DD
• 50 Ah 12V Lithium Battery
